GRAVITY LEVEL FILLING

ADVANTAGES

The Gravity / Level Filler has various advantages:

  • Simple, very low maintenance.
  • Can be completely pneumatically operated, which is an excellent option for fire hazard areas.
  • Easily adjustable.
  • Can fill a range of containers on the same machine.
  • Interchange-able nozzles for different neck sizes.
  • Easy product change overs, and easy to clean.

SPECIFICATIONS

Our Gravity / Level Filler  has the following specs:

  • Header, 316 stainless steel in product path.

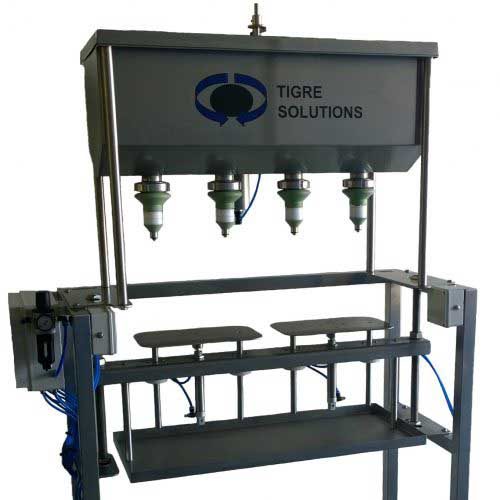

  • Complete on own free-standing frame.

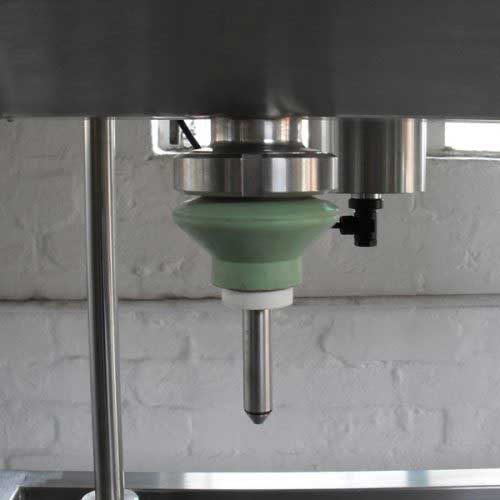

  • Below style level nozzles with din nut attachment to tank for easy removal.

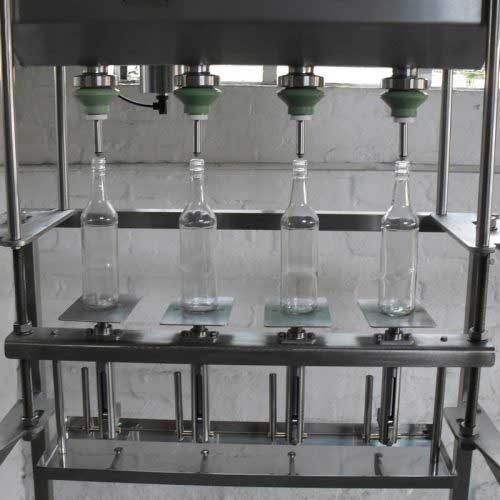

  • Pneumatic bottle lift system lifts 2 bottles at a time.
  • Fully adjustable for different size bottles.
  • Automatic level control valve with stainless steel float.
  • Includes 1 set of nozzles.
  • Operator will load and remove the bottles manually.
  • Complete stainless steel construction.

CAPABILITIES

Capabilities of the machinery depends on options selected, container styles / sizes and level of machinery automation.

Tigre Solutions Gravity Level Filling Variations

ALL FILLING MACHINERY INCLUDES:

  • Fixed Point Adjustment Nozzle Rack

With the option of:

  • Partial Pneumatic Dive
  • Full electronic ball screw dive system
  • Polycarb Guarding (if applicable)

With the option of:

  • Electronic Safety Interlock Switches
  • CIP Trough
